既是咖啡館，也是都市裂縫中生長出的舞臺
More than a café, a stage sprouting from urban cracks.
在城市的縫隙里，總有一些意想不到的呼吸口。在蘇州湖濱新天地的這一隅，設計團隊以“城市裂縫” 為設計主題，基于雙層集裝箱改造，將建筑解構為具有張力的空間形態，呼應吳彥祖倡導的 “無拘、隨性卻不失堅韌秩序” 的 WHATEVER 品牌內核。設計核心在于打破傳統建筑的規整邊界，通過空間的 “裂變” 與重組，把都市的喧囂與咖啡的靜謐并置在同一幀畫面，重新建立人與建筑、人與城市的互動關系，打造契合年輕群體 “不被定義” 的消費與社交場景。
There are always unexpected breathing spaces tucked away in the crevices of a city. In this corner of Lakeside Paradise in Suzhou, the design team adopted the concept of urban cracks and transformed two stacked shipping containers into a dynamic spatial form. This deconstructive architectural design echoes the core ethos of the WHATEVER brand advocated by Daniel Wu—unrestrained, spontaneous yet underpinned by a resilient order.
The core of the design lies in breaking the rigid boundaries of conventional architecture. Through the fragmentation and recombination of space, it juxtaposes the hustle and bustle of the city with the tranquility of a café within a single spatial frame. By doing so, it redefines the interactive relationship between people, architecture and the urban environment, creating a consumption and social venue that resonates with the younger generation’s pursuit of an undefined lifestyle.

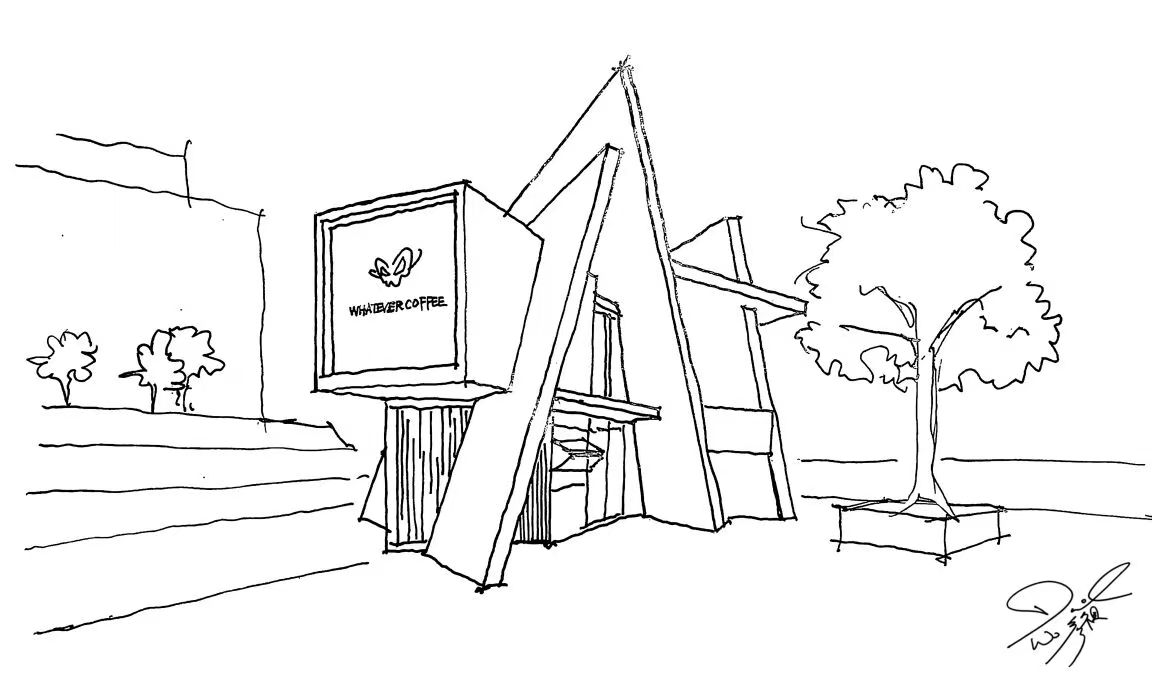

簽名手繪，signed sketch ? 平介設計

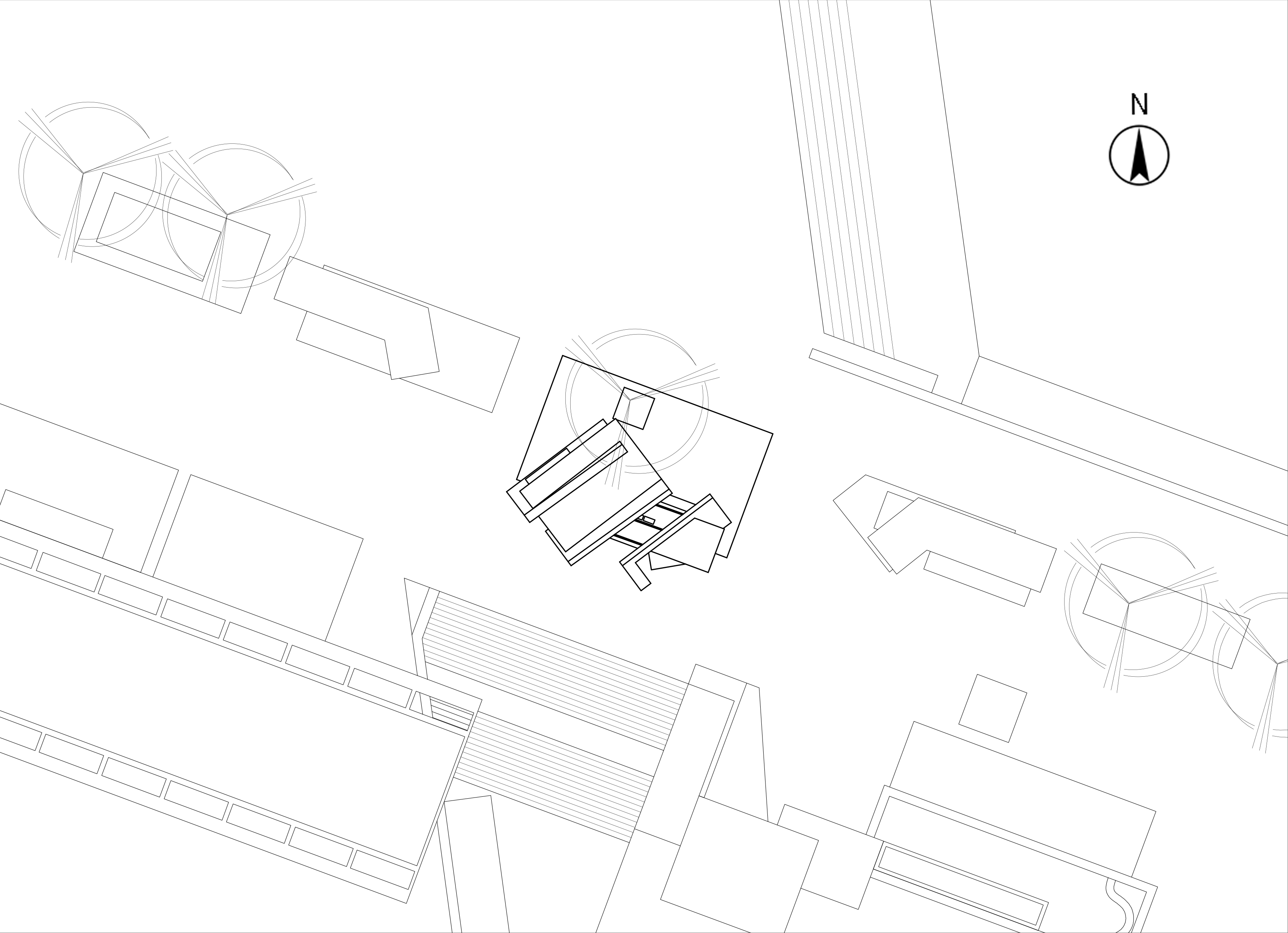

總平面圖Site plan ? 平介設計
01 湖邊的裂痕 / A crack along the shore
湖岸被輕輕撕開的一道痕跡，起點就在這里。
沿湖外立面以簡潔的體塊切割為主要手法，建筑主體與湖岸形成自然呼應。通過硬質感的建筑體量與柔緩的湖面形成材質與形態對比，既保證建筑在湖濱環境中的視覺辨識度，又通過通透的界面處理，實現室內外景觀的相互滲透，讓咖啡空間與湖景資源有機融合。
A subtle slit gently carved into the lakeshore—here marks its starting point.
The lakeside facade adopts a clean mass-cutting approach, with the building’s main structure naturally echoing the shoreline. Contrasting the rigid architectural volume against the serene water surface, the design ensures the building’s visual distinctiveness by the lakeside. Meanwhile, its transparent interfaces enable seamless interplay between indoor and outdoor landscapes, organically integrating the café space with the lake views.

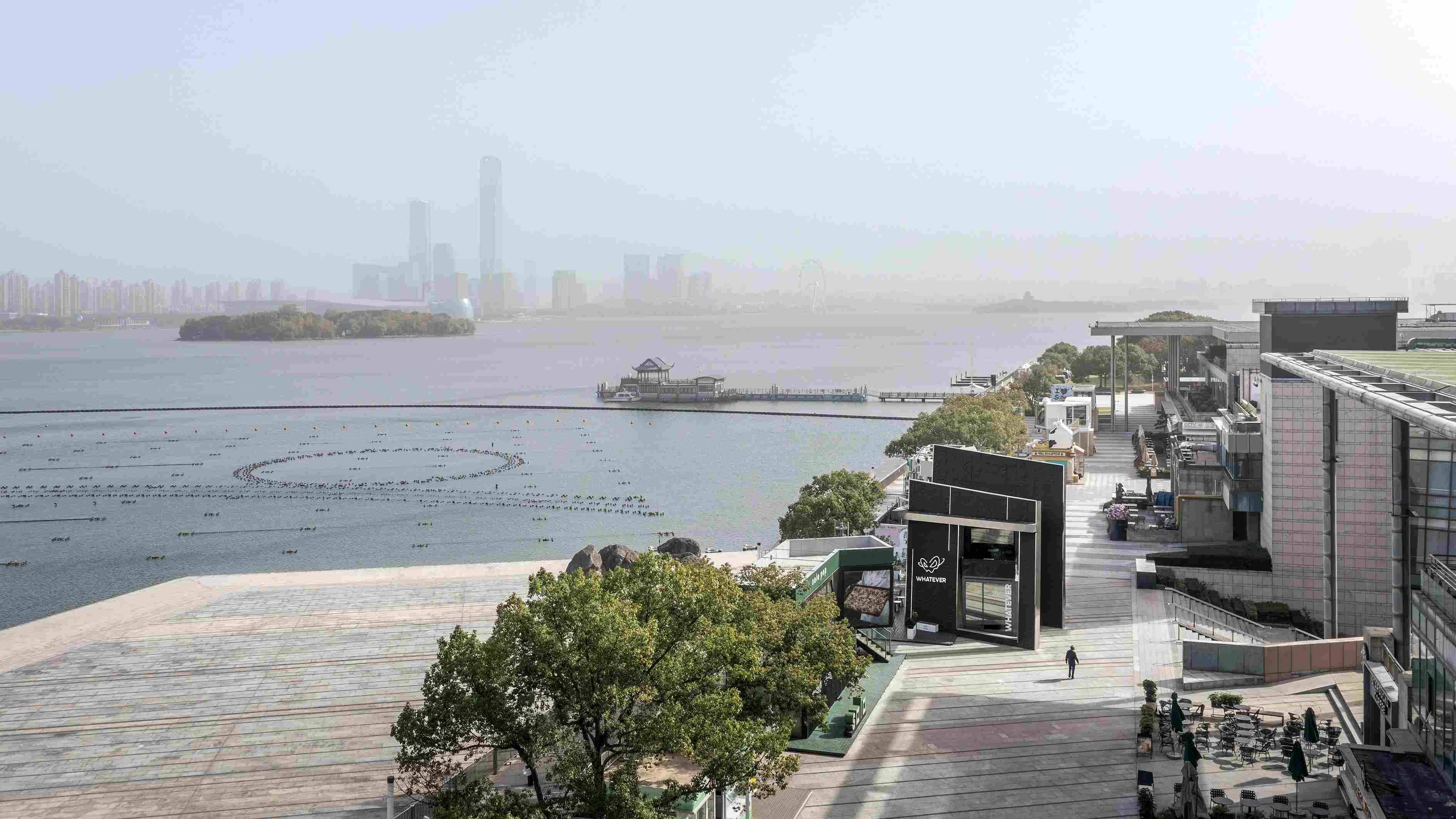

北側航拍，aerial view (north perspective) ?王尚

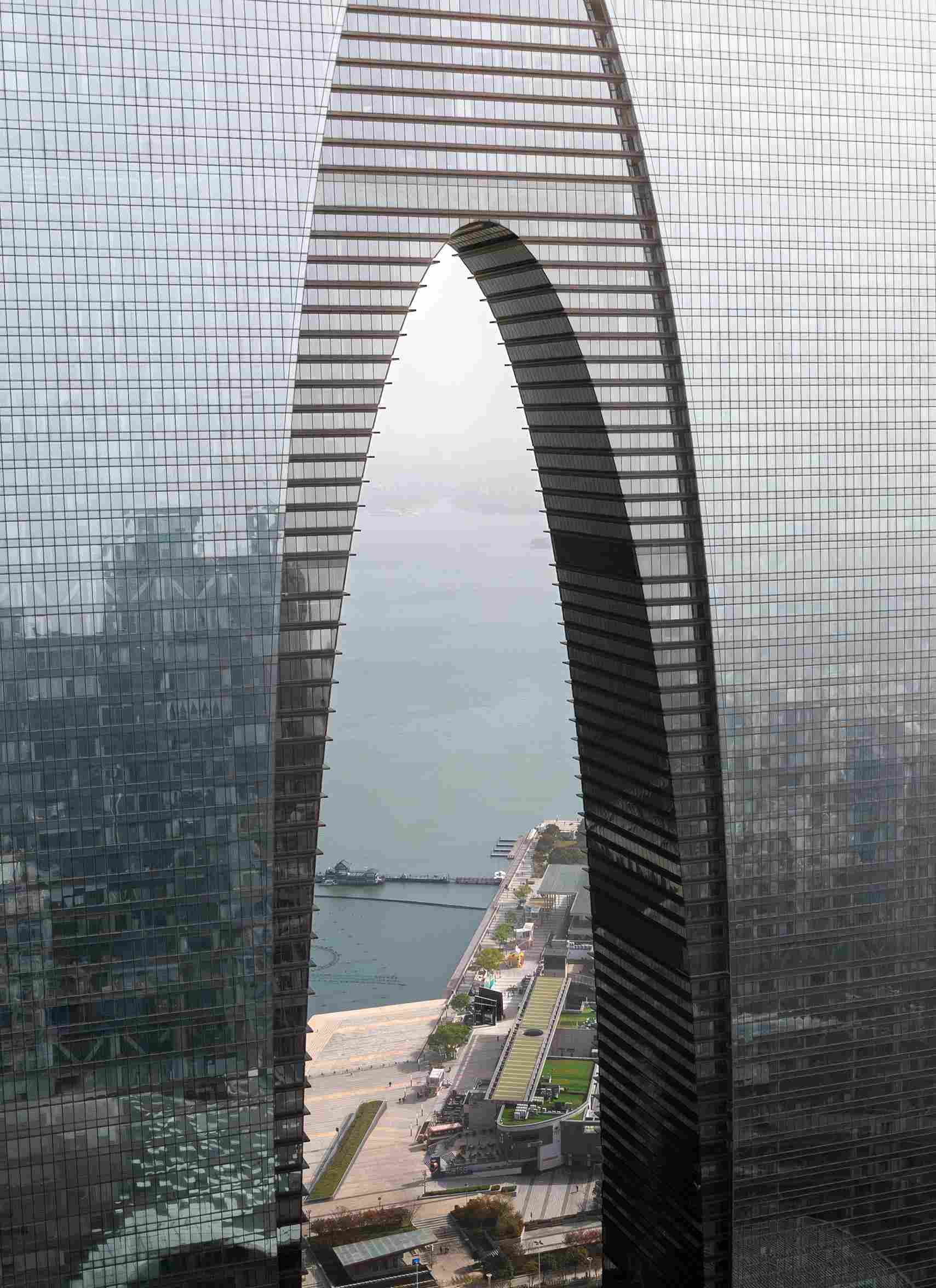

東方之門視角航拍，aerial view (oriental gate perspective) ?王尚

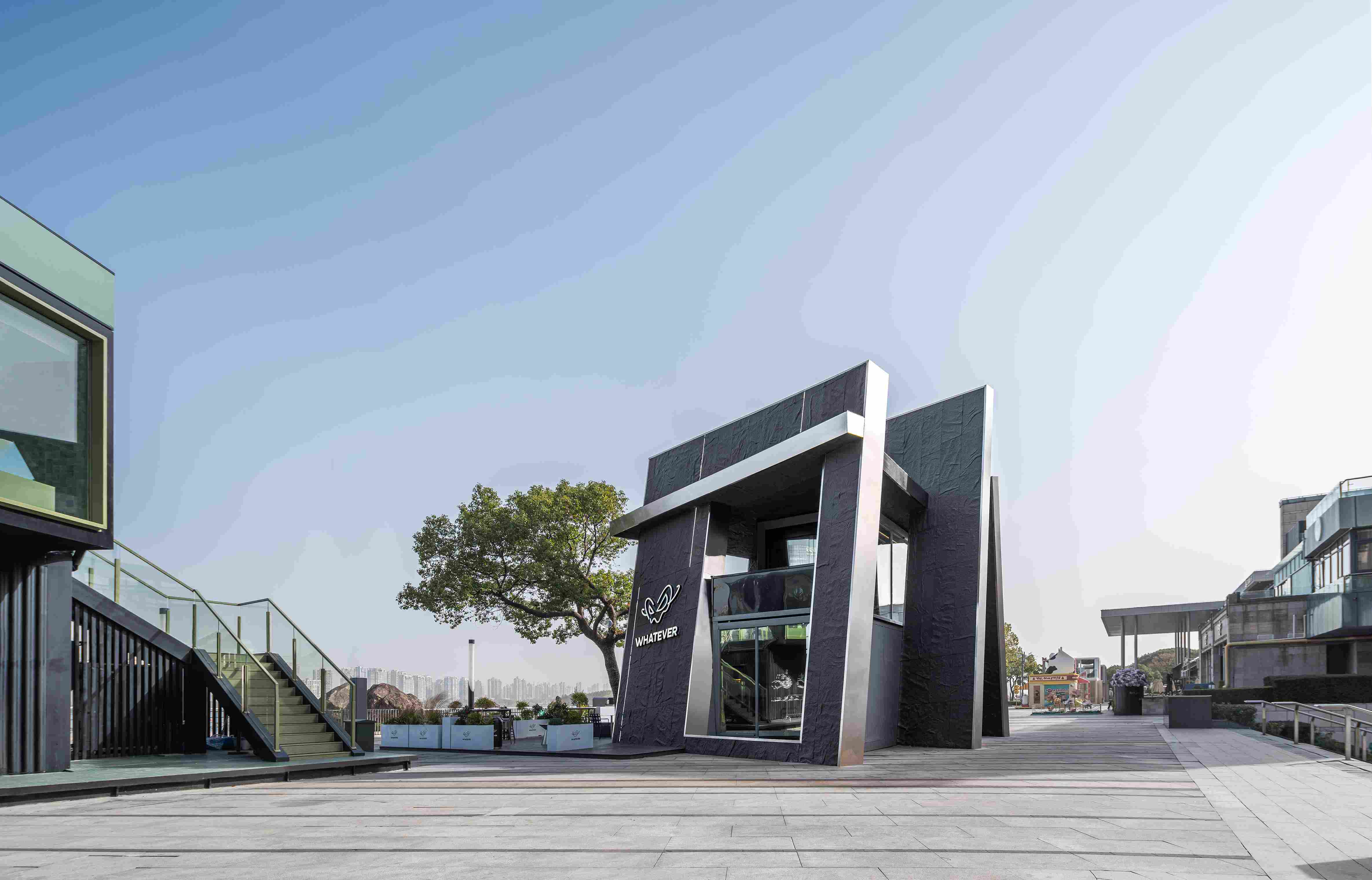

北立面，north elevation ?王尚

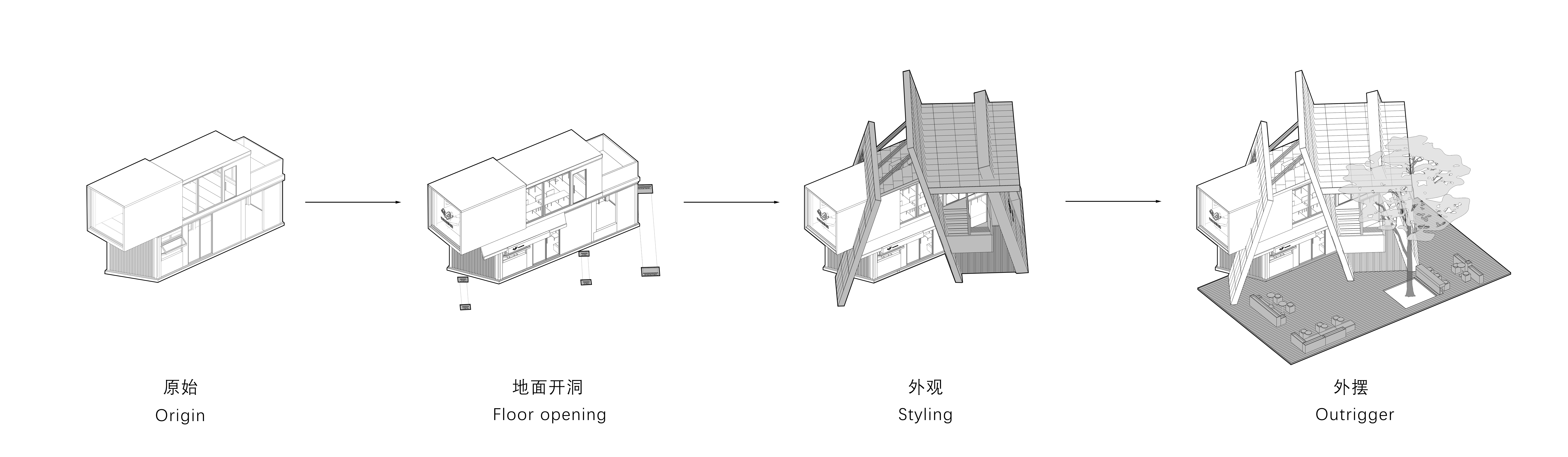

Whatever體塊生成 mass generation ? 平介設計
02 裂開的街角 / A fracture at the corner
外擺區采用木質鋪地作為主要材質，通過平整的鋪裝邏輯與街道形成自然過渡。設計弱化了建筑與城市的硬性邊界，以溫潤的材質質感柔化街道喧囂，構建出兼具實用性與休閑感的過渡空間，滿足用戶臨時停留、社交聚合的功能需求。
The outdoor seating area features wooden paving as the primary material, creating a seamless transition with the street through a neat paving layout. The design blurs the rigid boundary between the building and the city, softens street hustle with the warm texture of wood, and builds a functional yet relaxed transitional space that caters to users’ needs for temporary stays and social gatherings.

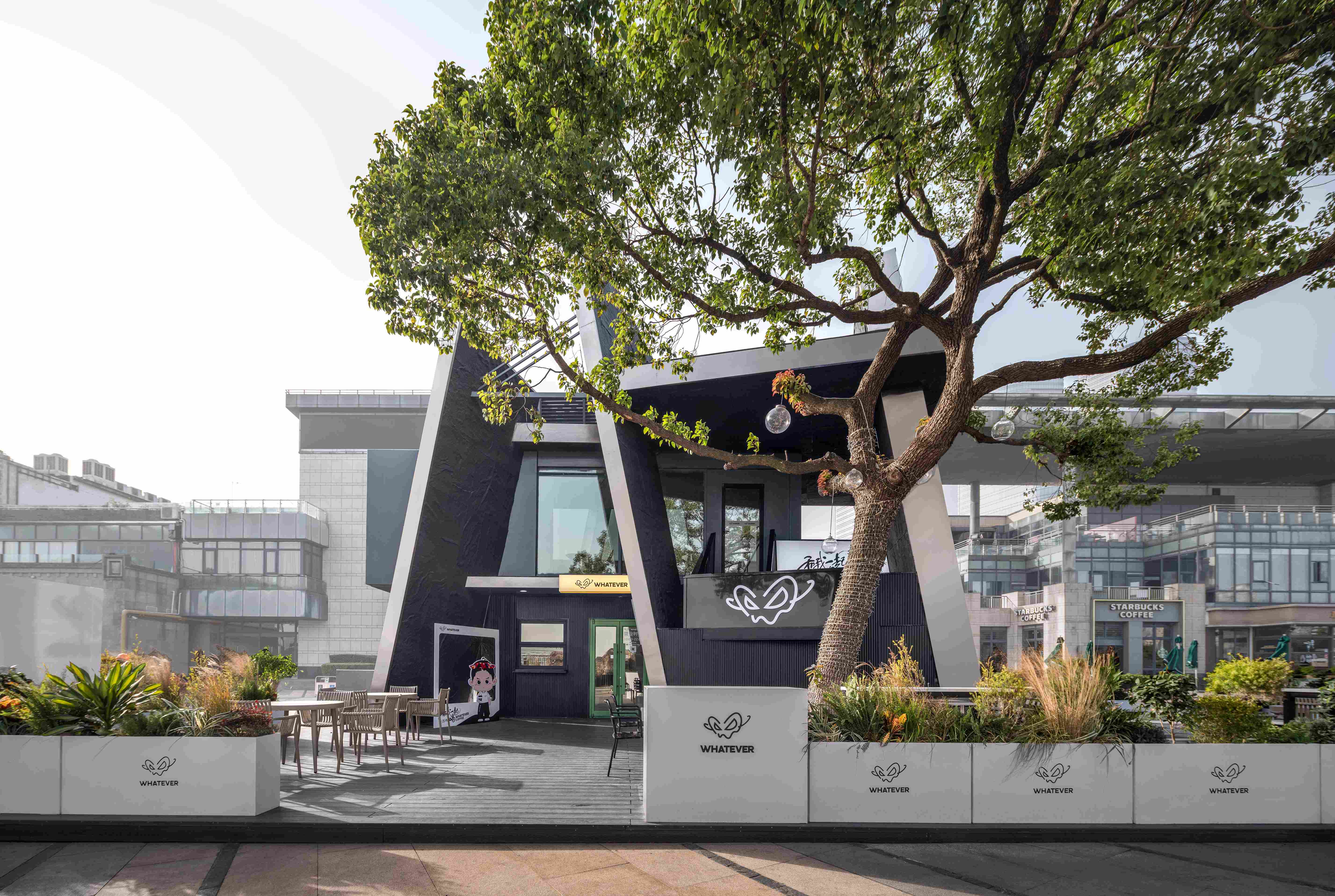

入口正立面，main entrance elevation ?王尚

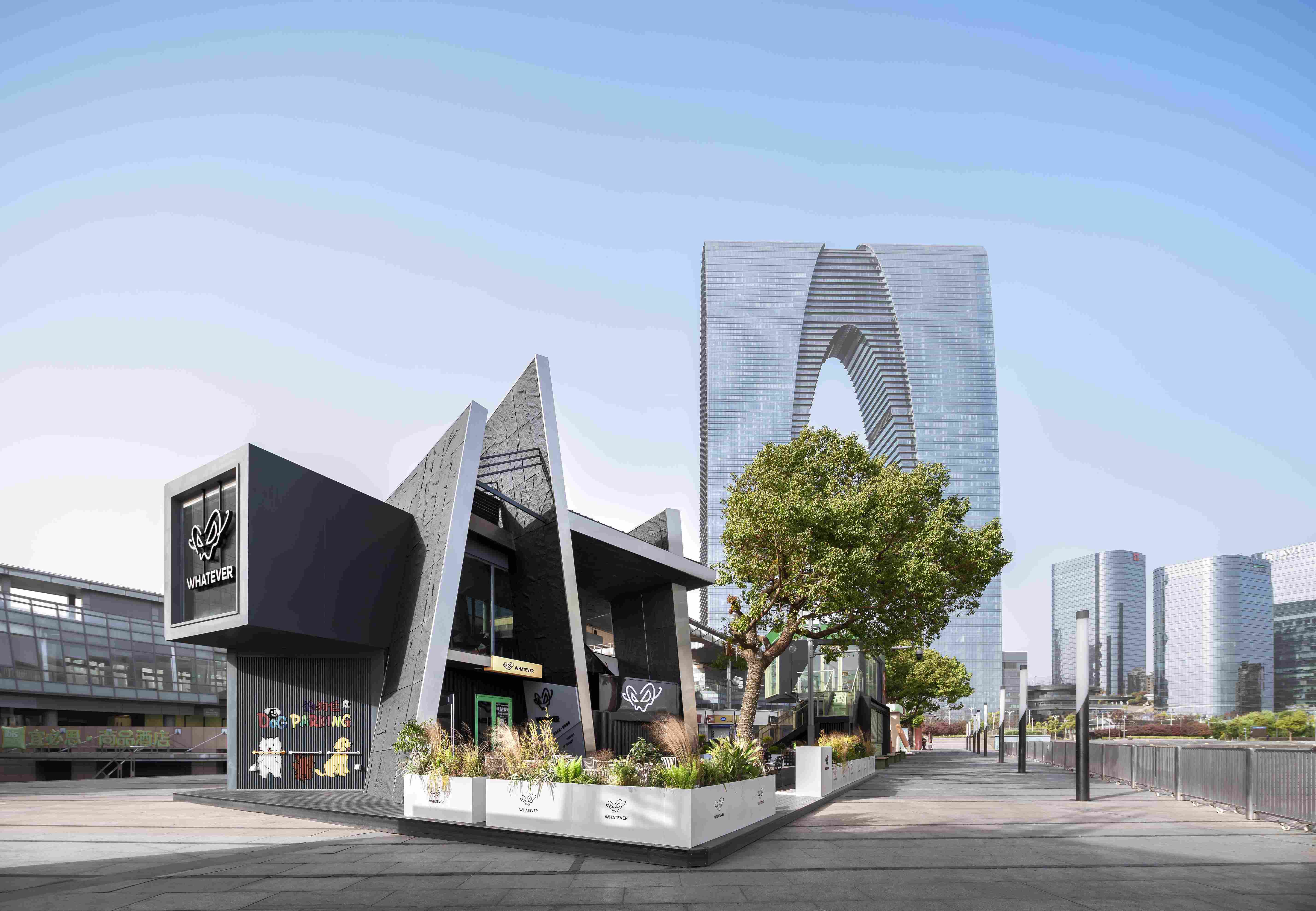

東南立面，south-east elevation ?王尚
03 縫隙之門 / The threshold of the fissure
入口采用 “雙板夾隙” 結構，由兩片角度不同的板材夾持形成狹長通道。非對稱的傾斜設計既通過獨特的形態造型提升入口辨識度，又搭配視線引導營造了探索感，強化了 “裂縫” 的空間意象，實現功能、視覺與主題的統一。
The entrance adopts a double-panel sandwich gap structure, with two angled panels forming a narrow passage. Its asymmetrical slant design not only boosts the entrance’s recognizability through a distinctive form but also fosters a sense of exploration via sightline guidance. This reinforces the spatial imagery of cracks and achieves the unity of function, visuals, and theme.
入口，entrance ?王尚
建筑主體在集裝箱的原始結構骨架基礎上，通過局部切割與延展，將 “湖岸裂變” 的力感轉化為立面形態。左側上掀式窗體設計，既增加了入口區域的通風與采光，又形成了獨特的建筑細節，讓靜態的立面產生動態張力，呼應品牌年輕、靈動的氣質。
三片傾斜片墻為主題核心表達載體，施工遵循 “框架 - 基層 - 表皮” 的技術邏輯：首先以 30mm 方鋼搭建傾斜框架，保障結構穩定性；再覆以鋁板作為 PU 石皮的承載基層，為表皮鋪貼提供平整、牢固的附著面，同時增強板材整體剛度；最后鋪貼 600*1200mm 規格 PU 石皮，搭配銀色金屬鋁板收邊。石皮的粗糲質感與金屬的精致光澤相互交織，既提升了建筑的耐候性與實用性，又通過工藝細節傳遞品牌 “隨性而堅韌” 的內核。
Based on the original frame of the shipping container, the main building transforms the dynamic tension of lakeshore fragmentation into its facade form through partial cutting and extension. The upward-opening window on the left not only enhances ventilation and daylighting at the entrance but also creates a distinctive architectural detail, endowing the static facade with dynamic tension that echoes the brand’s youthful, vibrant spirit.
The three slanted wall panels serve as the core medium for expressing the design theme, constructed following the technical logic of frame-base-skin: first, a slanted frame is built with 30mm square steel to ensure structural stability; next, aluminum panels are applied as the base layer for PU stone veneers, providing a flat, firm surface for veneer installation while enhancing the overall rigidity of the panels; finally, 600*1200mm PU stone veneers are laid and finished with silver aluminum trim. The rough texture of the stone veneers interweaves with the sleek luster of the metal, which not only improves the building’s weather resistance and functionality but also conveys the brand’s core value of being free-spirited yet resilient through sophisticated craftsmanship details.

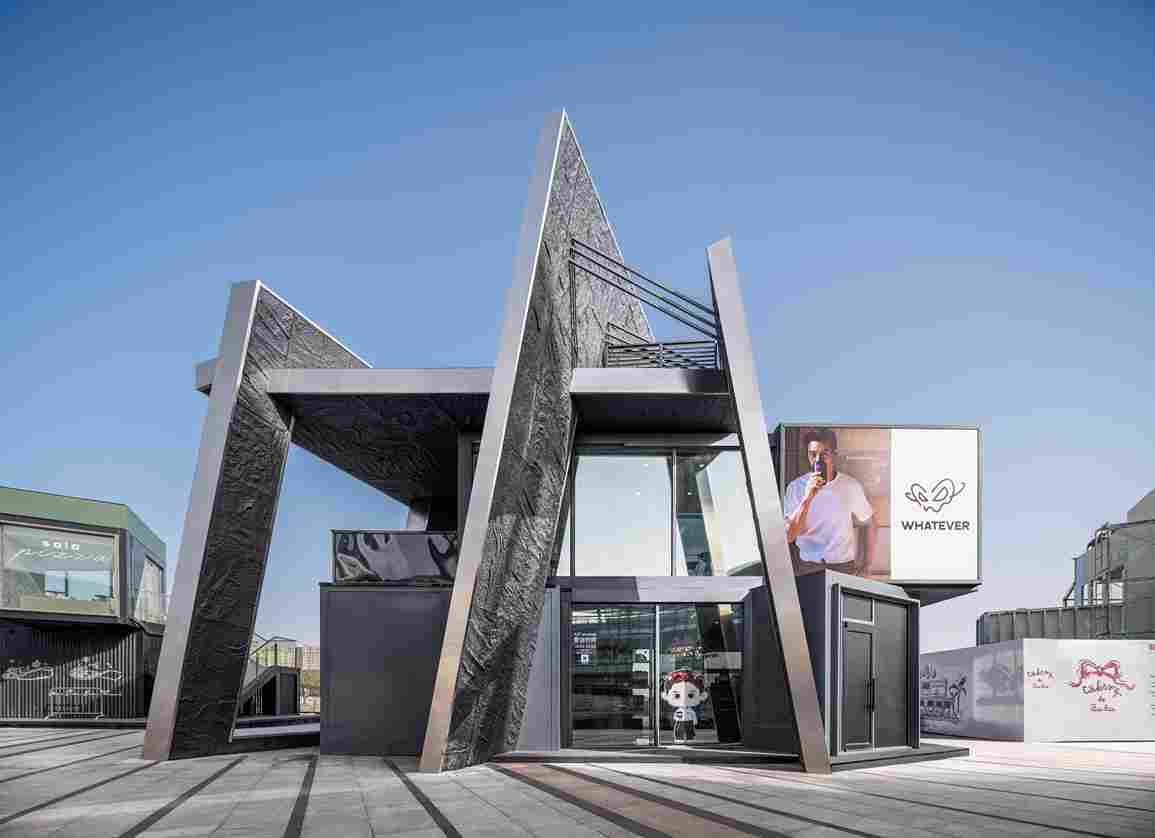

西立面，west elevation ?王尚

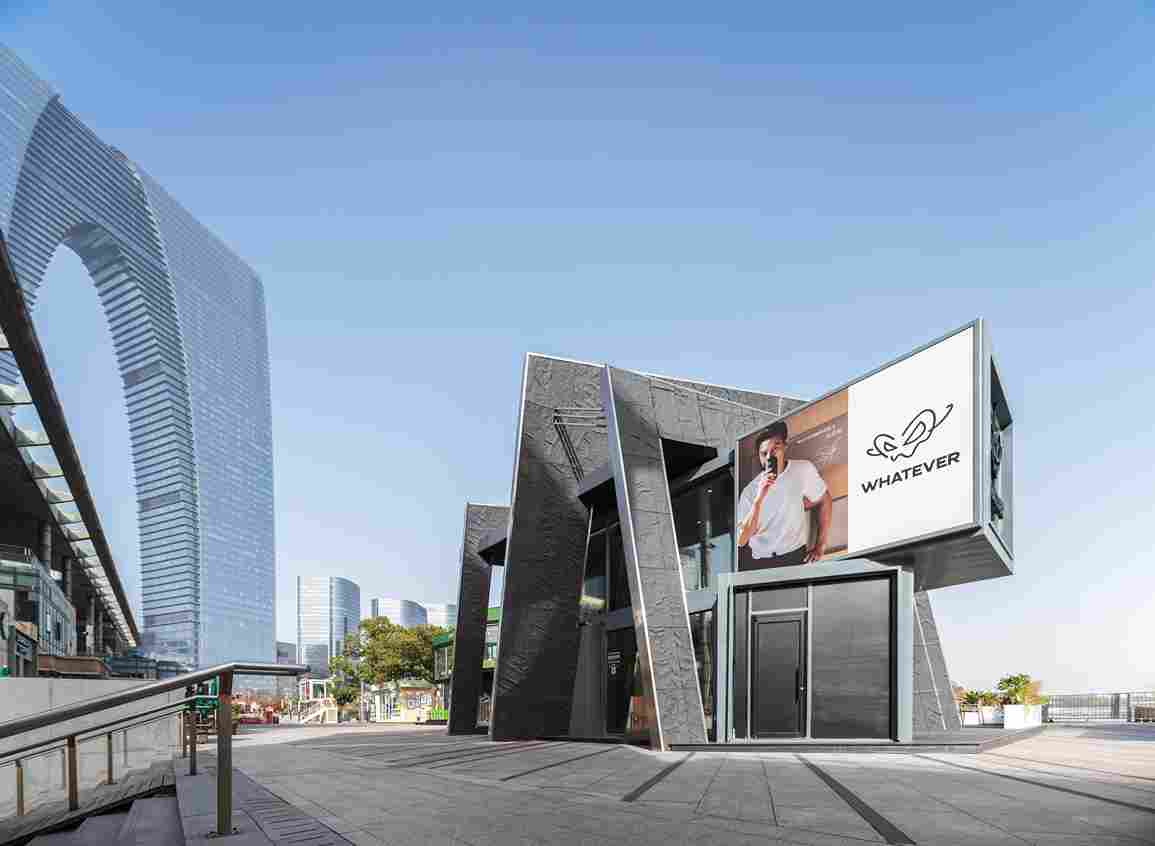

西南立面，south-west elevation ?王尚

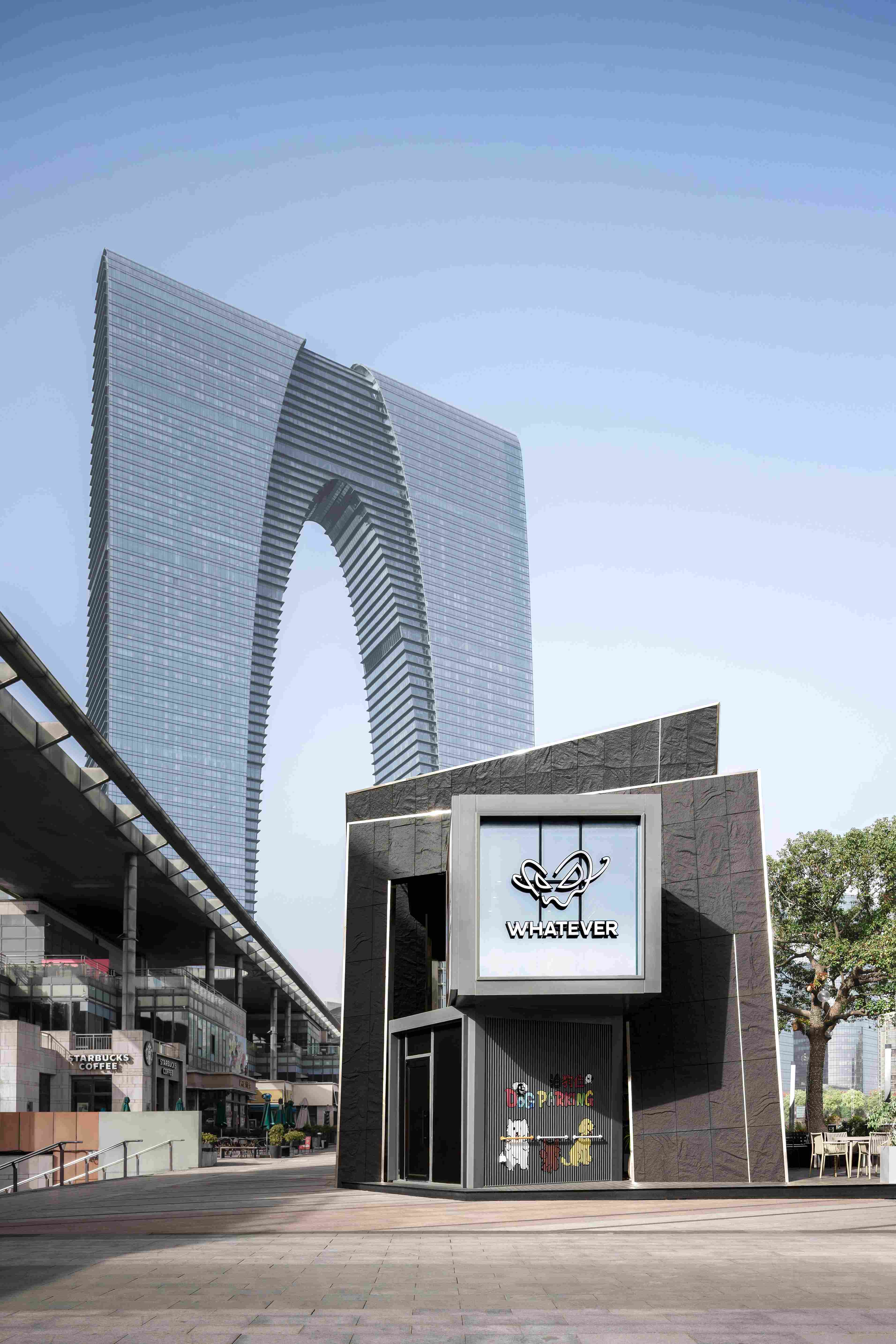

南立面，south elevation ?王尚

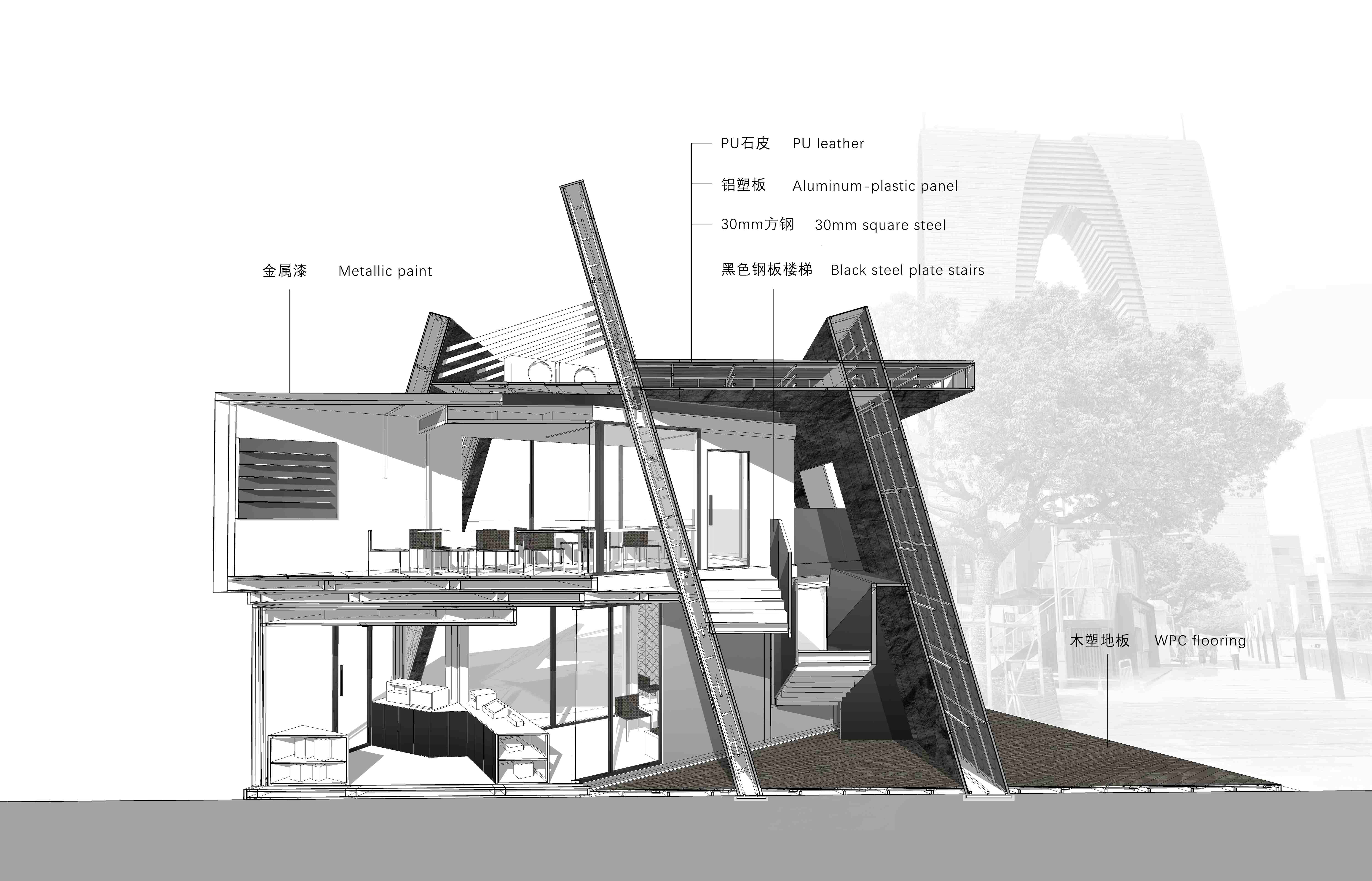

Whatever 剖透視perspective section ? 平介設計
樓梯采用外掛式設計，傾斜嵌入兩片墻體的夾縫之間，隱喻 “裂縫中向上探索” 的空間敘事。結構上，通過在原集裝箱頂部增設橫向鋼框架，實現樓梯與主體建筑的拉結固定，該框架同時兼具遮雨頂棚功能；空調外機隱藏于框架內部，避免設備外露破壞立面完整性，實現結構、功能與美學的一體化設計。
片墻傾斜角度與樓梯坡度形成視覺與結構的雙重呼應，橫向鋼框架將三者串聯為有機整體。這種設計既強化了 “裂縫生長” 的空間邏輯，又通過鋼結構構件讓片墻、樓梯與框架形成相互支撐的有機整體，提升了整體建筑的穩定性，延續了 “解構與重組” 的設計思路。
The external staircase is embedded at an angle in the gap between two walls, embodying the spatial narrative of upward exploration through cracks. Structurally, an additional horizontal steel frame installed on top of the original container secures the staircase to the main building, while also serving as a rain shelter. Air conditioning outdoor units are concealed within this frame to prevent equipment exposure from compromising facade integrity, thus achieving an integrated design that unifies structure, function, and aesthetics.
The inclination angle of the wall panels echoes the staircase slope both visually and structurally, and the horizontal steel frame connects the three components into an organic whole. This design not only reinforces the spatial logic of growth from cracks but also leverages steel structural elements to form a mutually supportive system between the wall panels, staircase, and frame, enhancing the overall stability of the building and extending the core design concept of deconstruction and recombination.

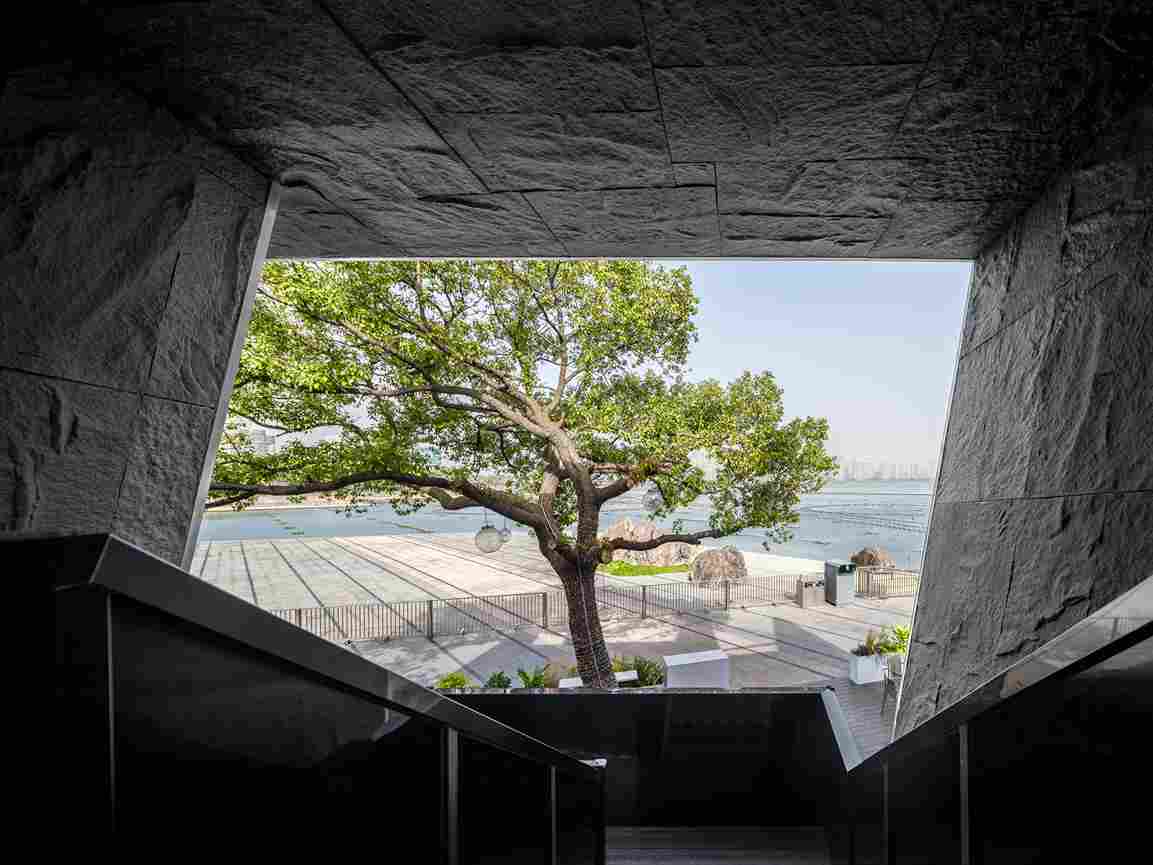

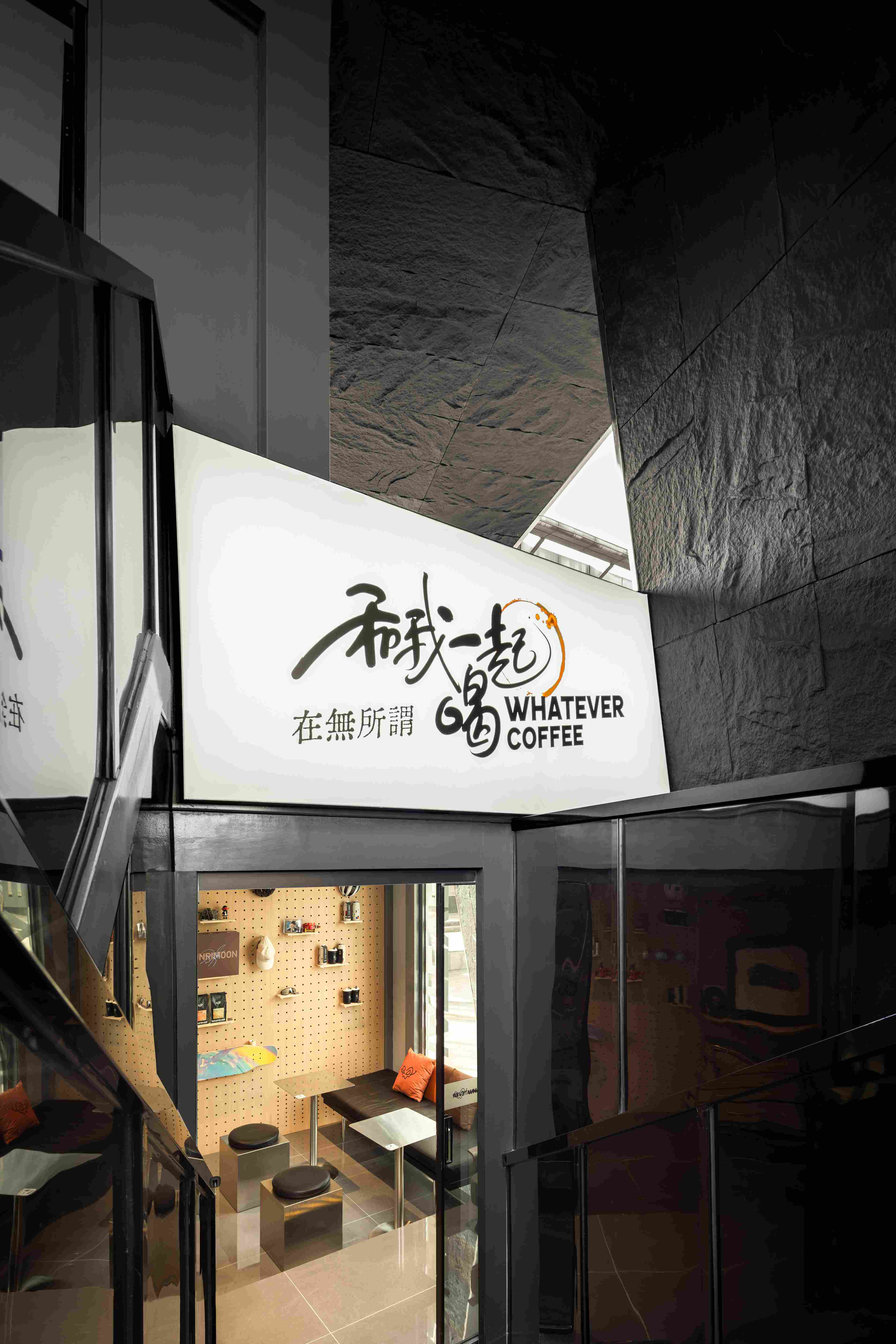

樓梯間隙，stairway ?王尚
樓梯間隙，stairway ?王尚

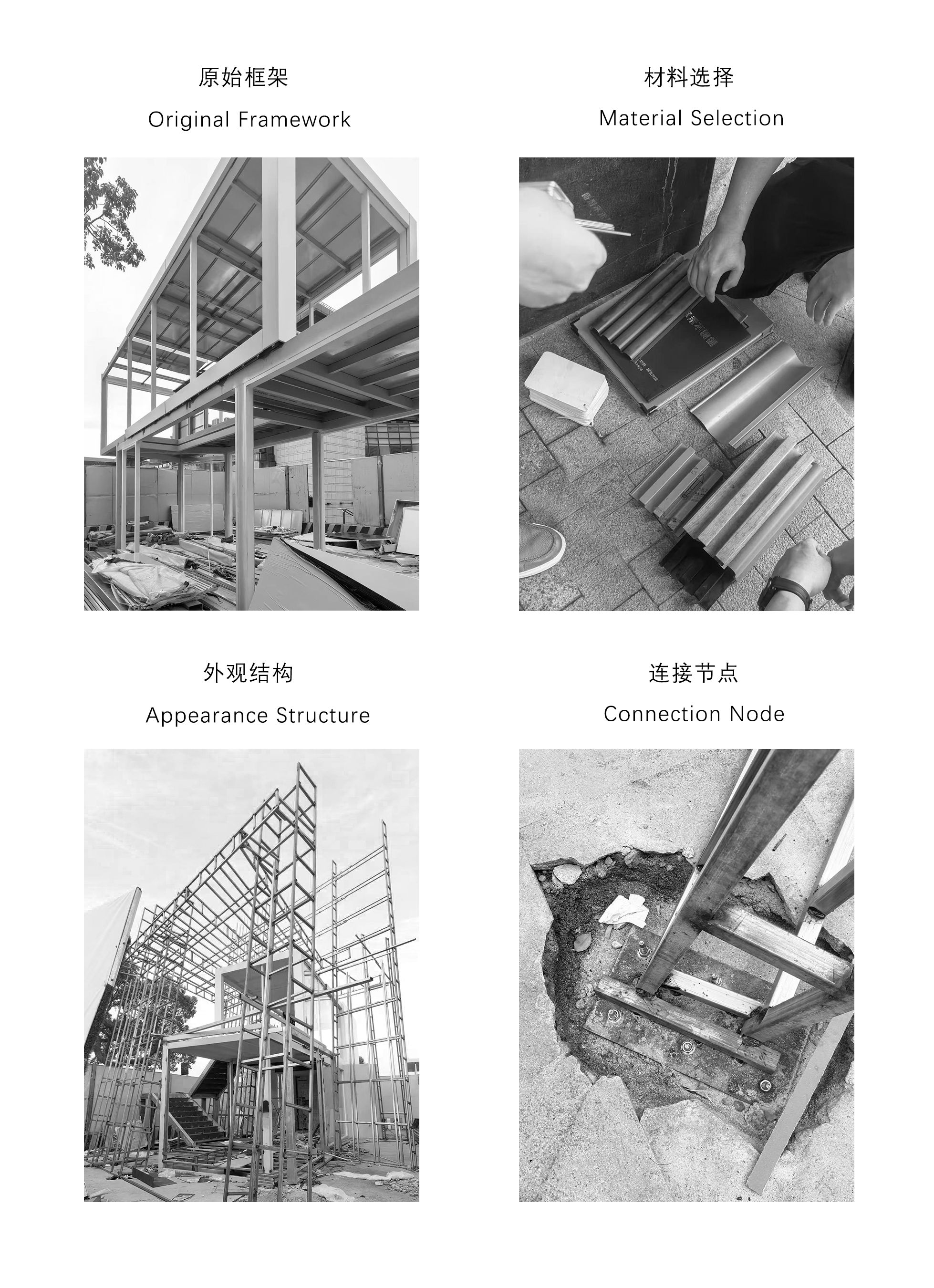

建造過程construction process ? 平介設計

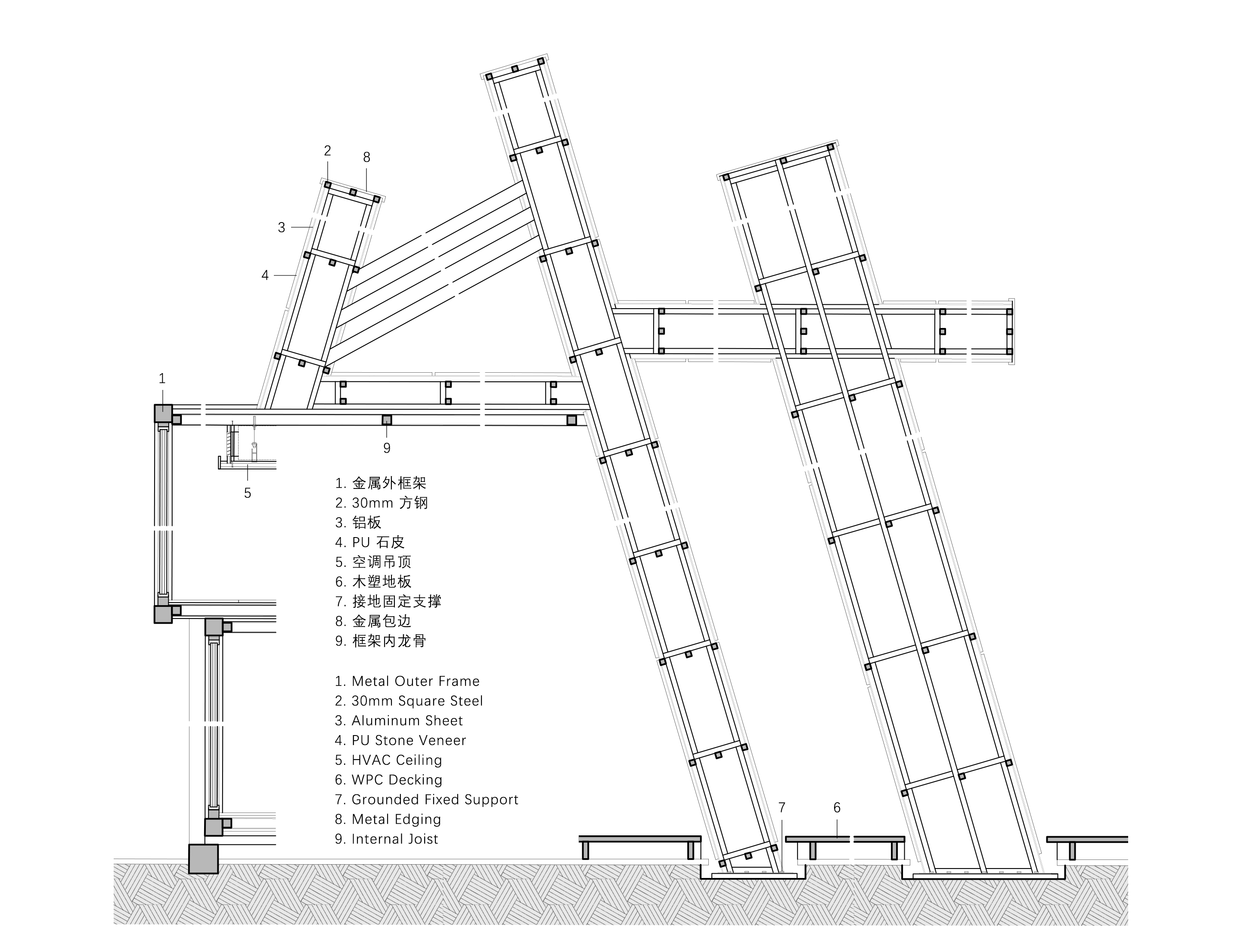

結構細節construction detail ? 平介設計
04 裂隙深處 / Within the fissure
1F 內部空間 / The Interior Space
一層空間通過體塊分割形成多層次布局，利用光影變化強化空間的縱深感與沉浸感。功能分區明確，涵蓋吧臺、室內用餐區、寵物友好區等，滿足咖啡制作、用餐、社交等核心需求，材質上延續外立面的粗糲與精致交織風格，保持空間質感的統一性。
The ground floor features a multi-layered layout formed by volume division, with light and shadow variations enhancing the spatial depth and immersive experience. Boasting clear functional zoning that includes a bar counter, indoor dining area, and pet-friendly zone, it caters to core needs such as coffee preparation, dining, and socializing. In terms of materials, it continues the facade’s blend of rugged and refined textures, ensuring the consistency of spatial tactile and visual quality.

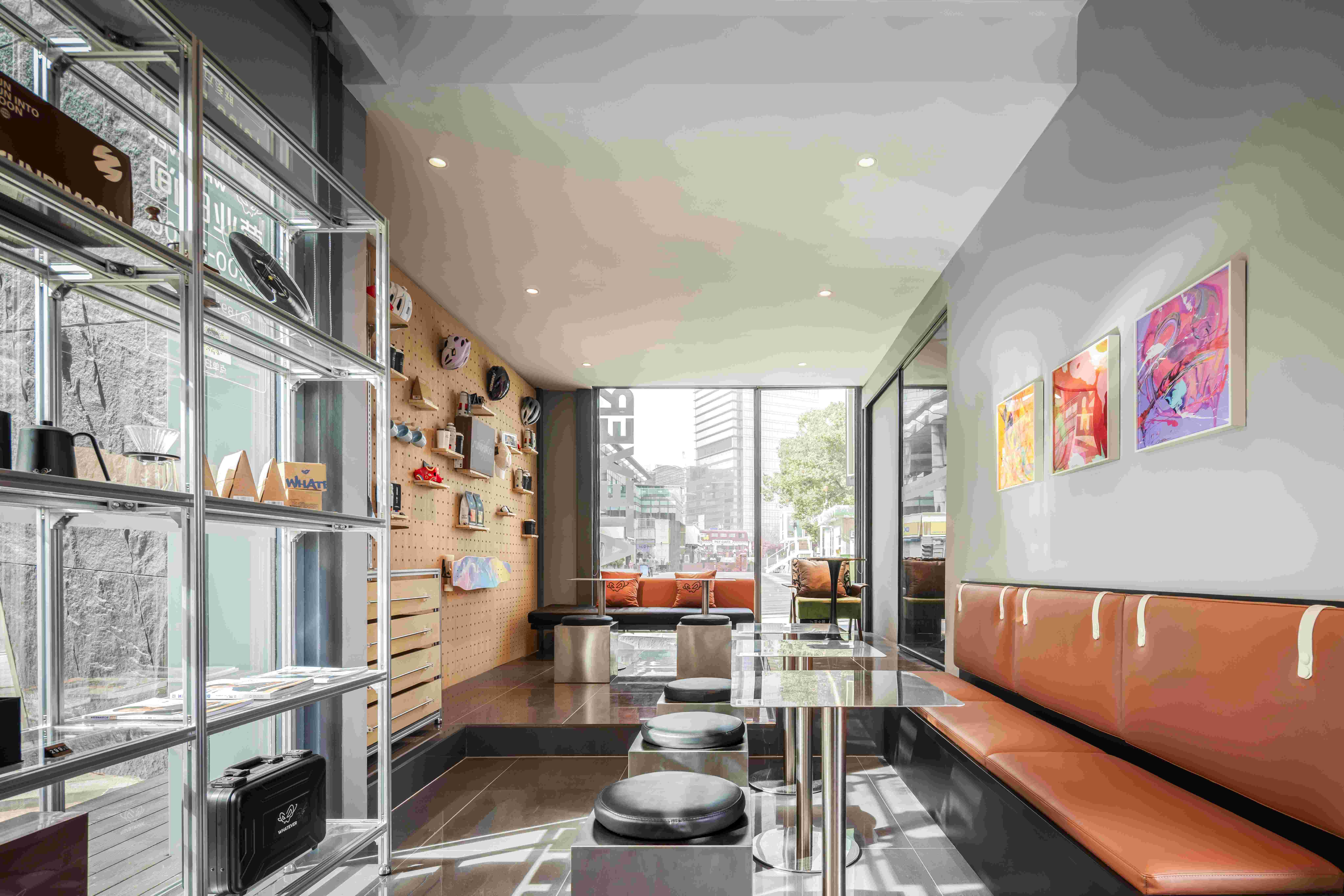

一層室內，1 floor interior ?王尚
一層室內，1 floor interior ?王尚

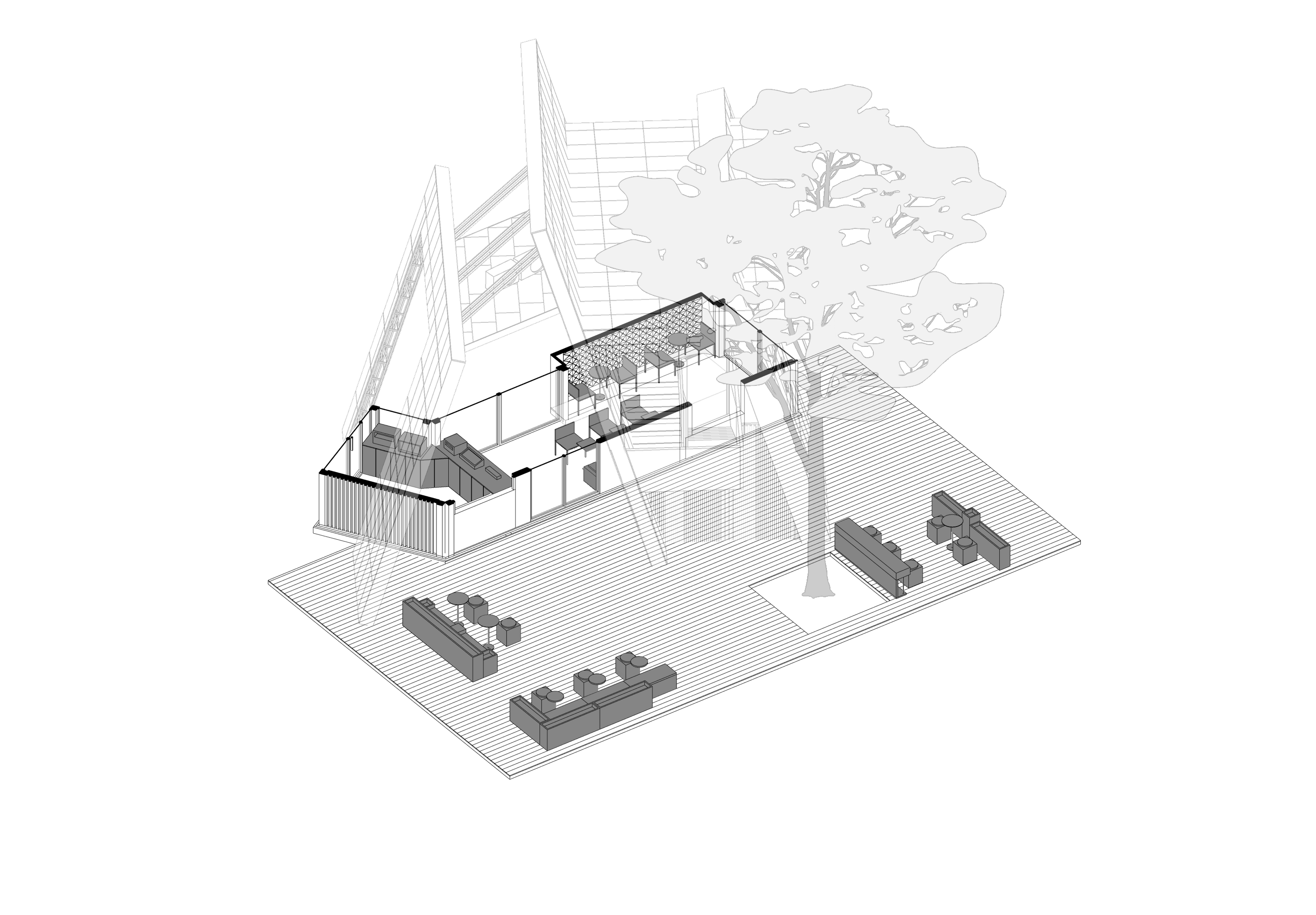

一層軸測圖1f Isometric drawing ? 平介設計
一層平面圖1f plan ? 平介設計
2F 內部空間 / The interior space
二層空間通過挑高設計與通透界面處理，提升空間開闊感。自然光透過立面縫隙引入室內，幾何形態的墻體與家具形成有序的空間節奏，營造出 “自由而不失秩序” 的氛圍，與品牌理念高度契合。
露臺作為 “裂縫旅程” 的終點與空間制高點，設計上以強化觀景體驗為核心，采用簡潔的鋪裝與護欄形式減少視覺干擾。視線沿建筑裂隙形態自然延伸，直抵東方之門等城市地標，讓都市景觀與 “裂縫” 主題在此形成獨特視覺對話，實現建筑意象與城市視野的交融共生。
The second floor adopts a high ceiling design and transparent interface treatment to enhance spatial openness. Natural light filters into the interior through the gaps in the facade, and the geometric walls and furniture create an orderly spatial rhythm, fostering an atmosphere of freedom without sacrificing order that aligns perfectly with the brand philosophy.
Serving as the culmination and highest vantage point of the crack journey, the terrace is designed to prioritize the viewing experience, with minimalist paving and railings to minimize visual distractions. Sightlines extend naturally along the building’s crack-like contours, leading directly to urban landmarks such as the Gate of the Orient. This setup creates a unique visual dialogue between the urban landscape and the crack theme, achieving a symbiotic integration of architectural imagery and city views.

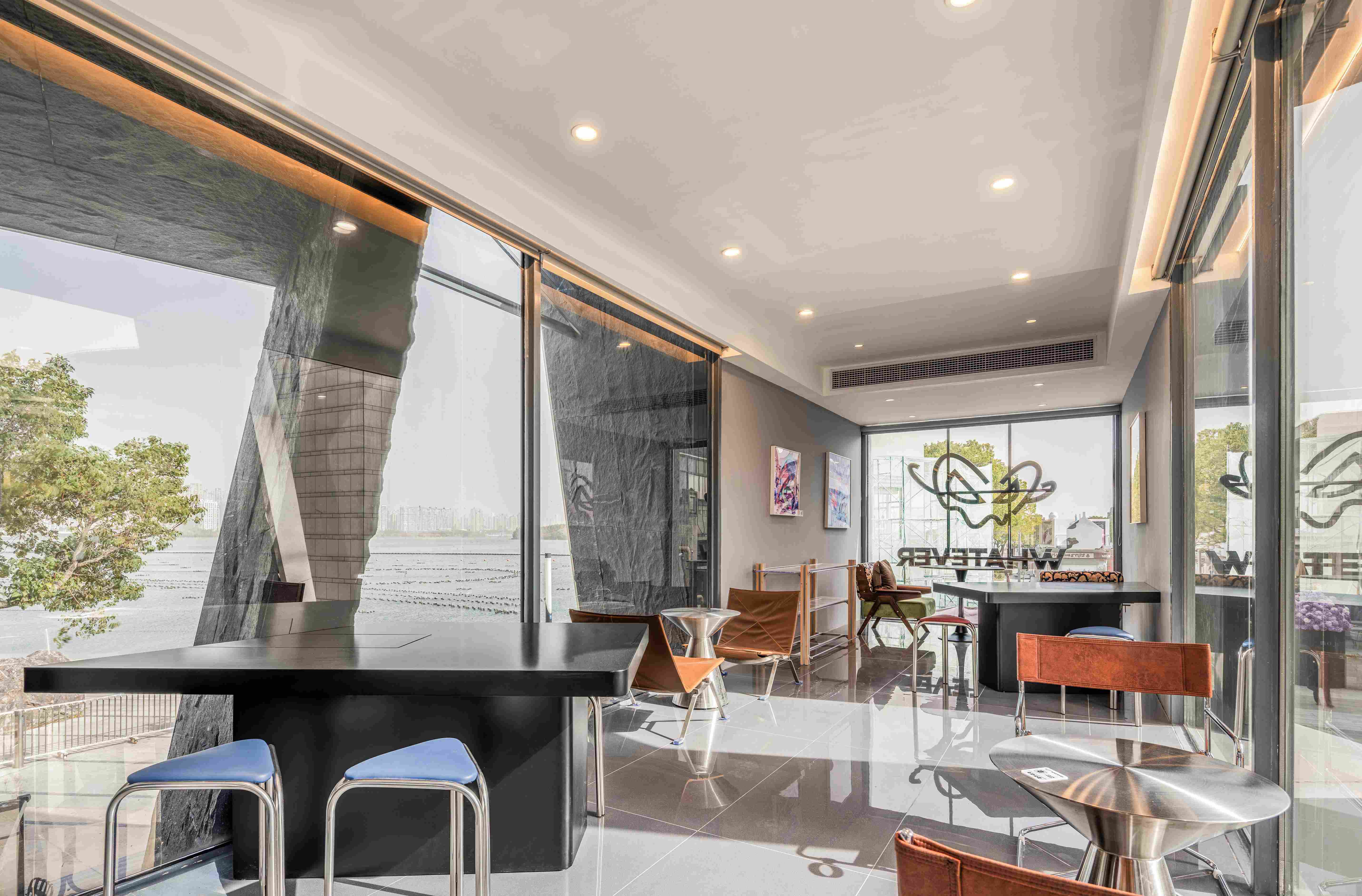

二層室內，2Floor interior ?王尚

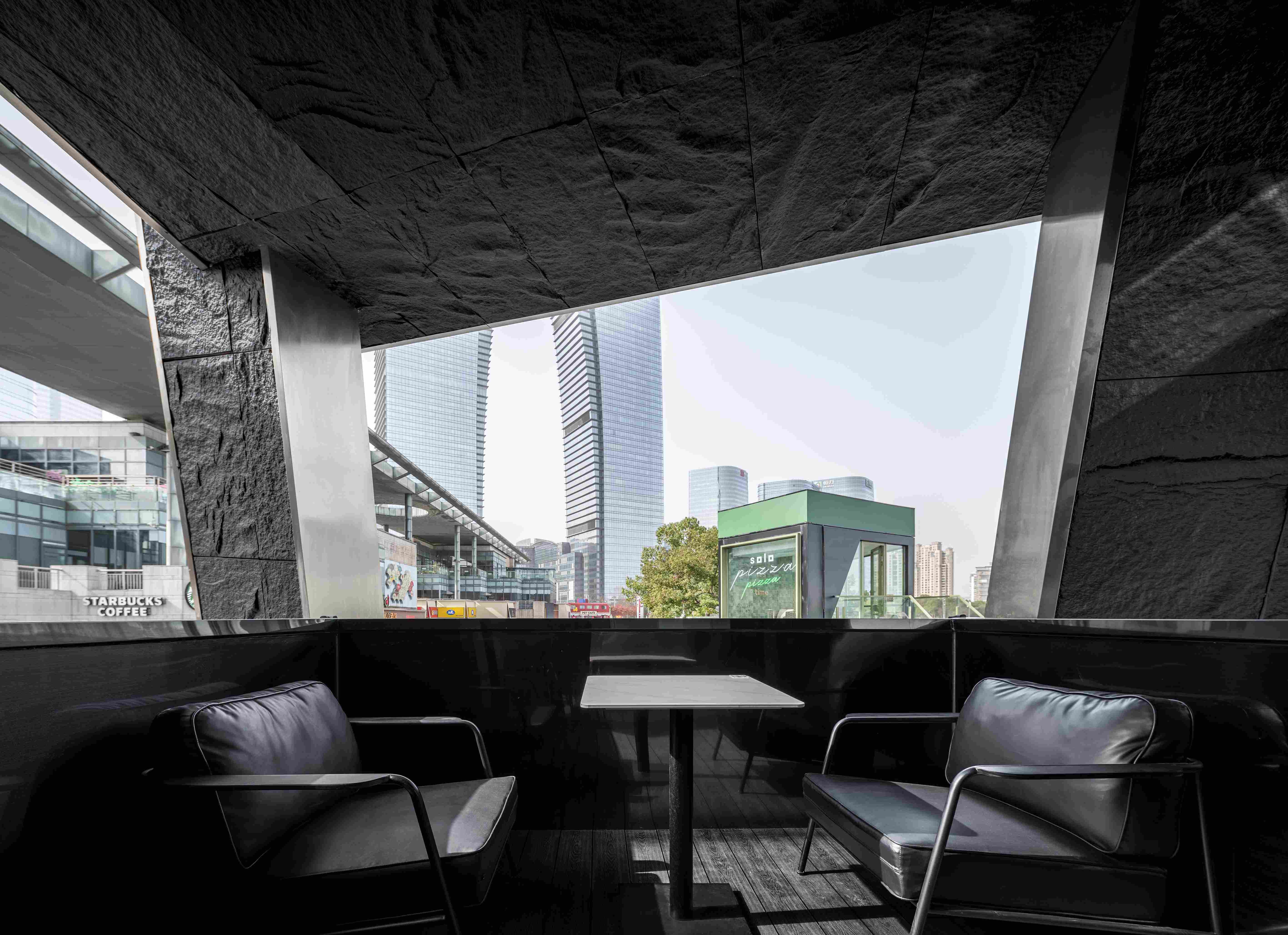

二層露臺，2f balcony ?王尚

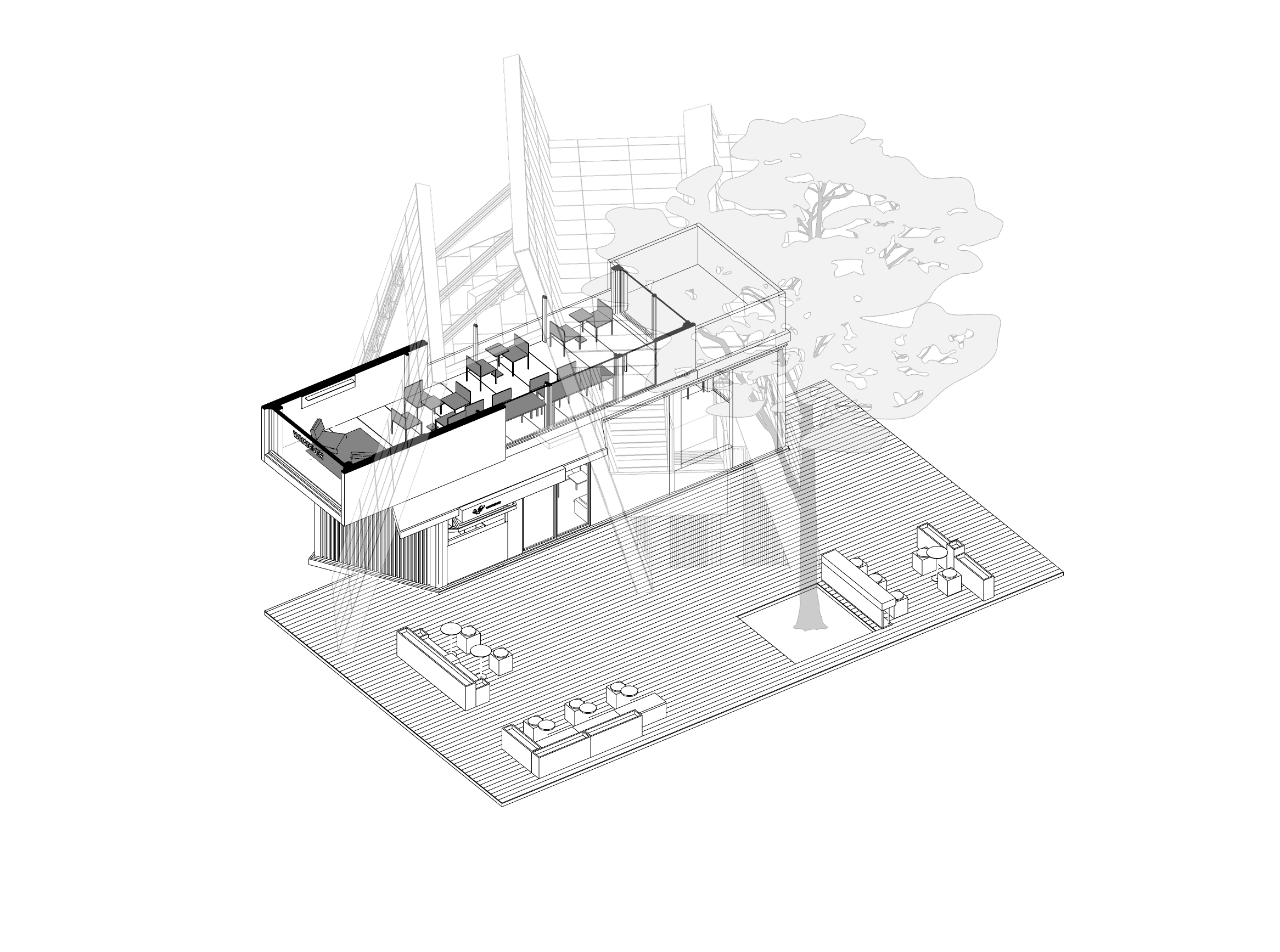

二層軸測圖2f Isometric drawing ? 平介設計

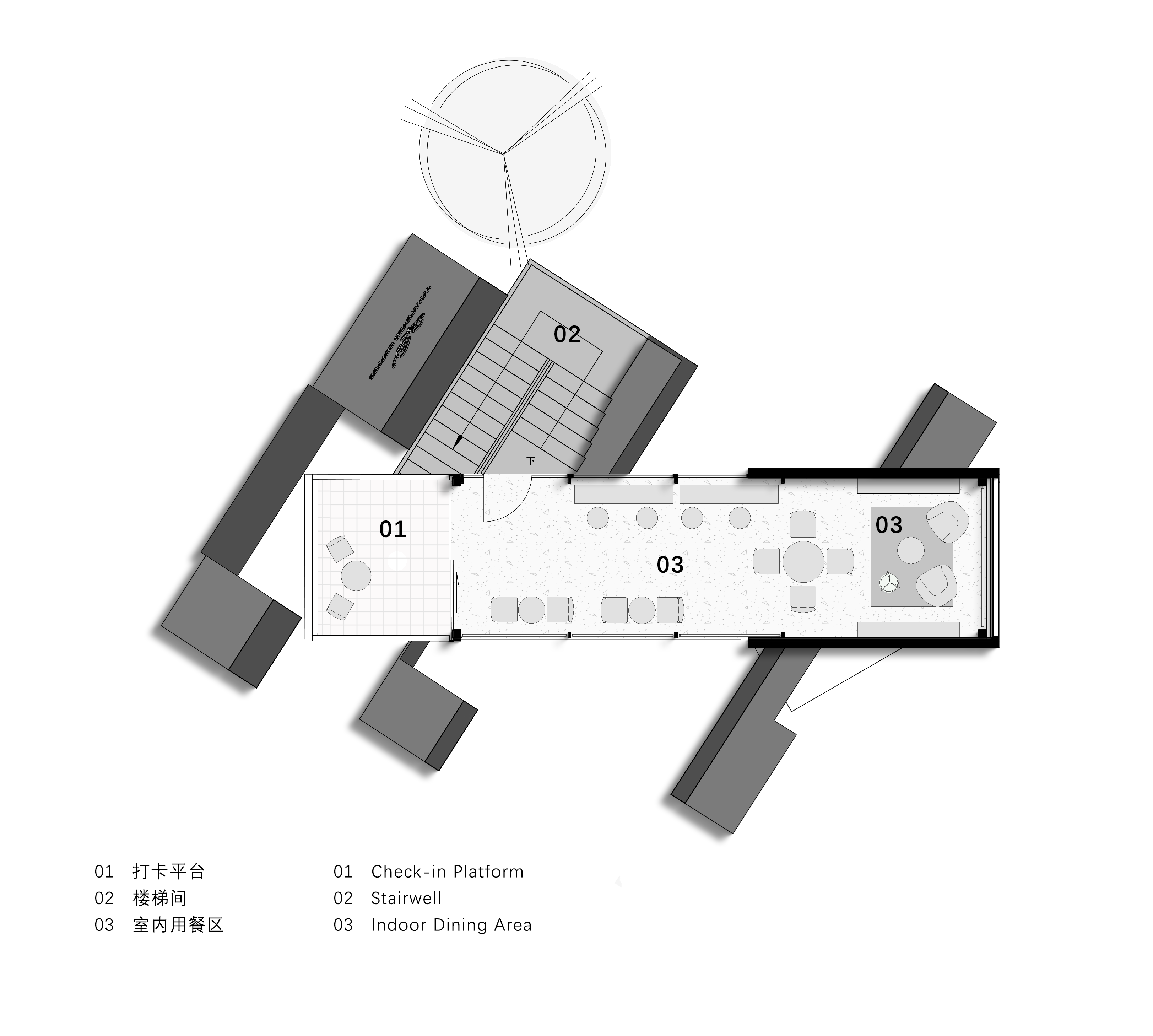

二層平面圖2f plan ? 平介設計
品牌文創周邊 / Brand Creative Merchandise
吳彥祖的咖啡理念藏于文創細節，隨性質感與實用美學在此相融。面具、水杯等周邊成為承載品牌精神的隨身信物，讓城市咖啡記憶時刻相伴。
Daniel Wu’s coffee philosophy is embedded in cultural and creative details, where a free-spirited texture blends seamlessly with functional aesthetics. Brand merchandise such as masks and mugs serves as portable emblems of its ethos, keeping the memories of urban café moments close at hand.

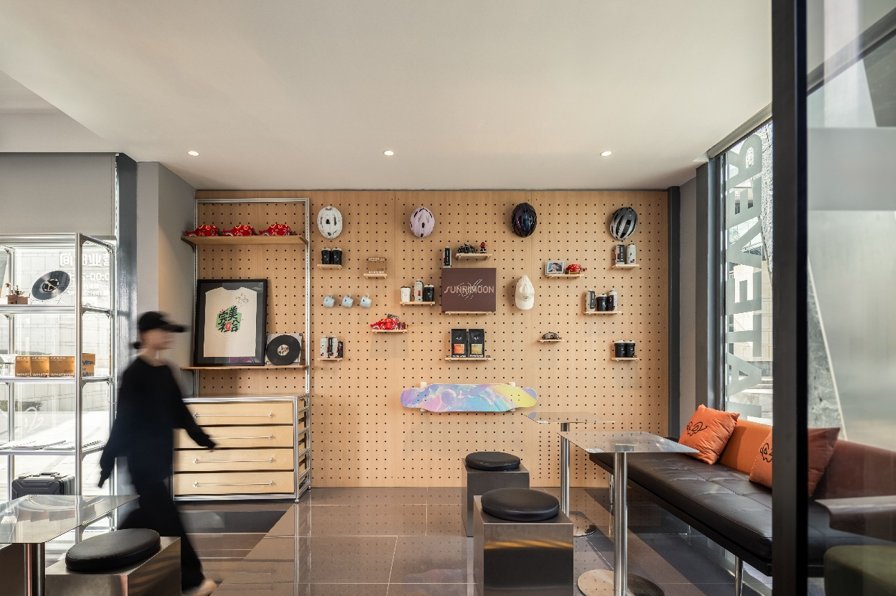

品牌周邊，brand merchandise ? 平介設計

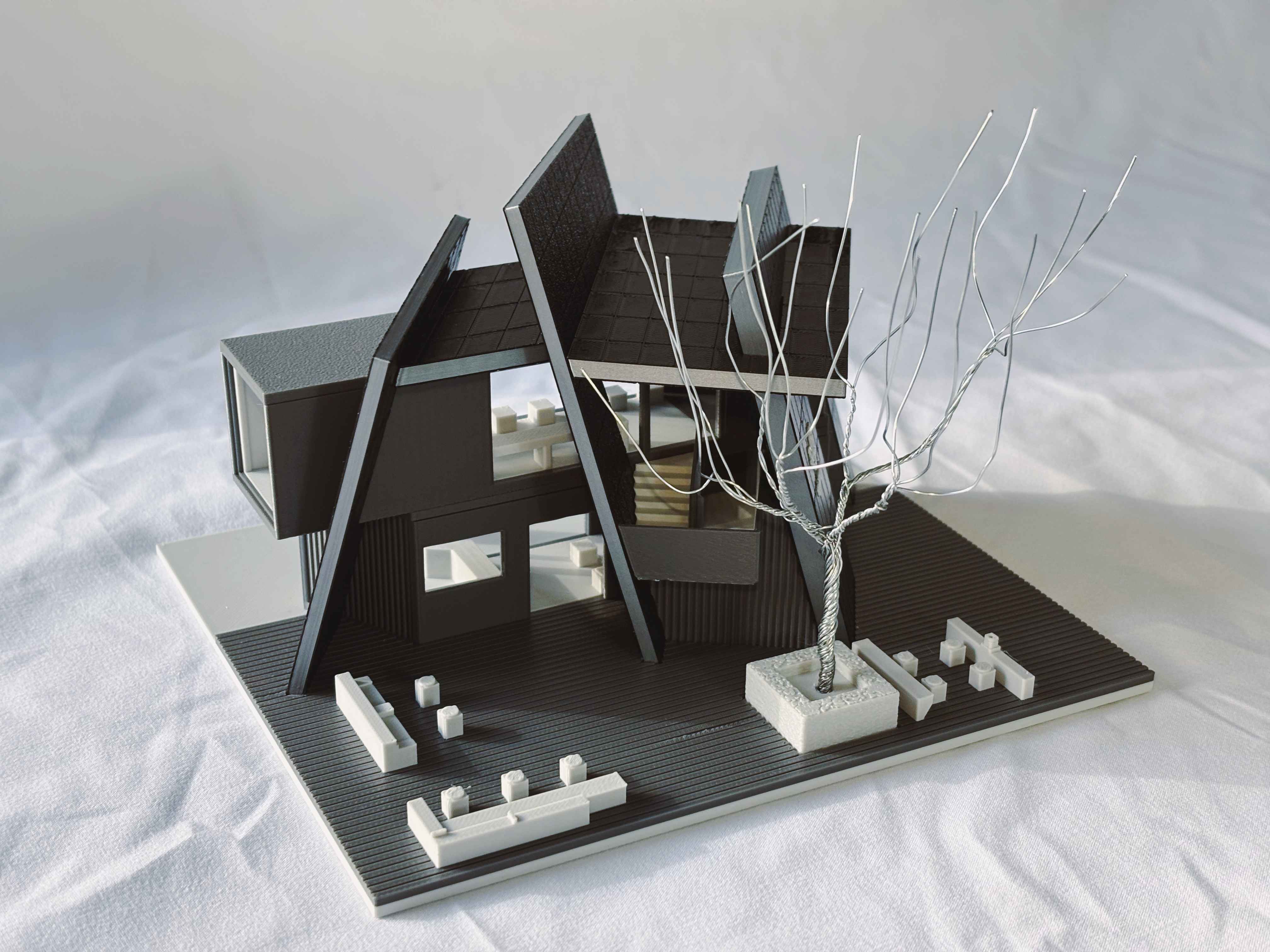

模型照片，model photo ? 平介設計
打卡機位 / Public Seating
公區座位就像裂縫中生長的停駐點，結合空間角落與視野優勢靈活陳設，打造兼具實用性與觀賞性的社交節點。既滿足日常用餐需求，又以切割形成的獨特角落為年輕人提供多樣化拍照打卡場景，讓人與人的自然交流在此發生，成為承載新都市社交敘事的活力舞臺，契合年輕群體的社交習慣與審美偏好。
Public seating, akin to resting spots sprouting from cracks, is flexibly arranged to leverage spatial corners and viewing advantages, creating social hubs that balance functionality with visual appeal. These areas not only cater to daily dining needs but also offer diverse photo opportunities for young people through the uniquely partitioned nooks. They foster natural interactions among visitors, serving as dynamic stages for new urban social narratives that align with the social habits and aesthetic preferences of the younger generation.
拍照打卡，photo check-in ? 平介設計
夜晚氛圍 / Night ambience
夜間照明以燈帶為核心載體，沿建筑線條精準布置，既通過光線勾勒出建筑解構后的動態形態，強化 “城市裂縫” 的主題表達，光影溫和且富有層次。當夜幕降臨，流動的光線游走于立面之間，建筑在黑暗中散發靈動能量，如同都市脈絡中跳動的心跳，既營造出契合品牌氣質的年輕氛圍，更讓建筑成為夜間城市景觀中富有節奏與活力的一部分。
Night lighting centers on light strips, precisely installed along the building’s contours. It outlines the dynamic deconstructed form of the structure to reinforce the urban cracks theme, casting soft, layered light and shadow. As night falls, flowing light glides across the facade, imbuing the building with vivid vitality in the dark—like a beating pulse in the urban fabric. This not only creates a youthful ambiance true to the brand identity but also elevates the structure into a rhythmic, vibrant highlight of the city’s nightscape.

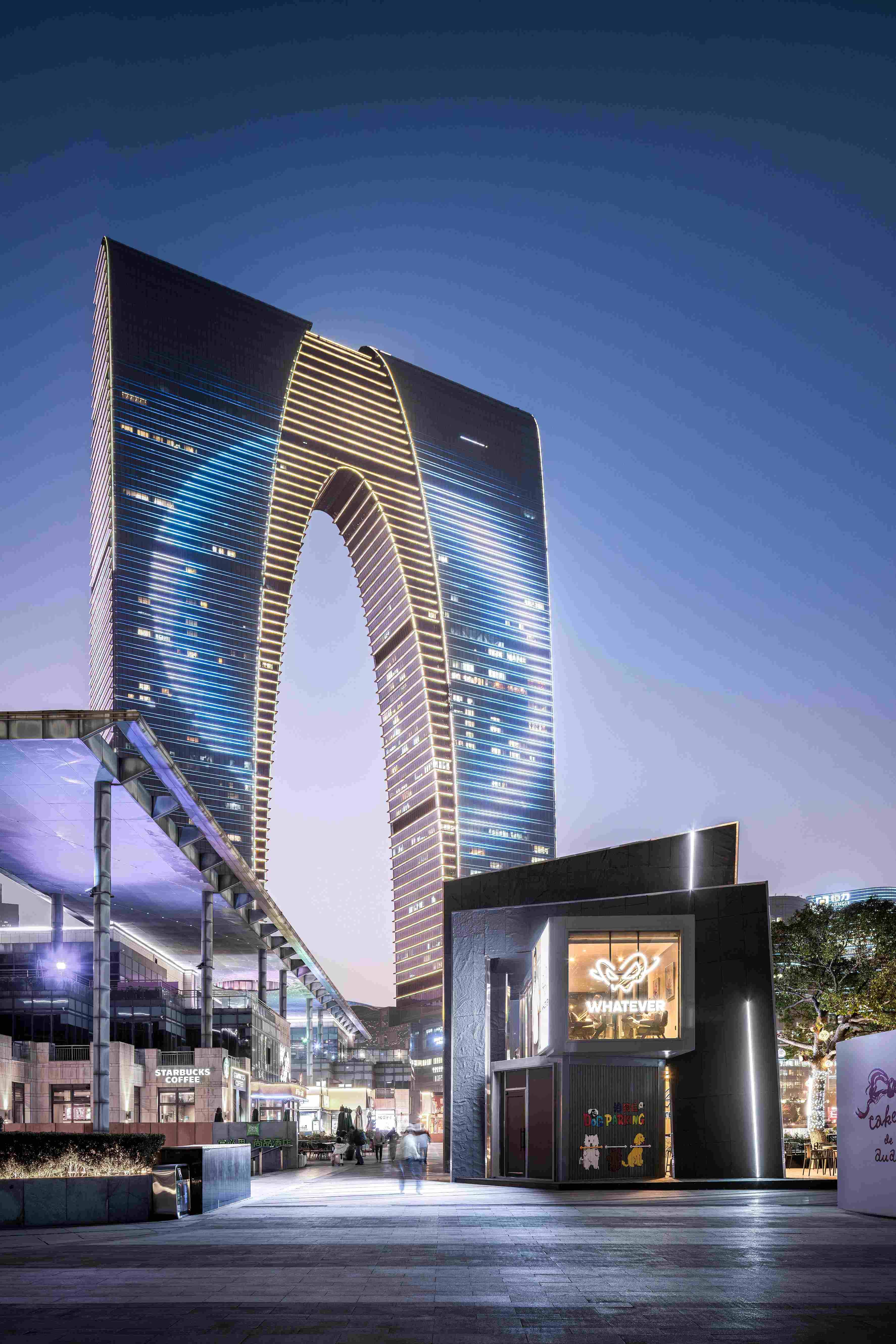

南立面夜景，south elevation (night view) ?王尚

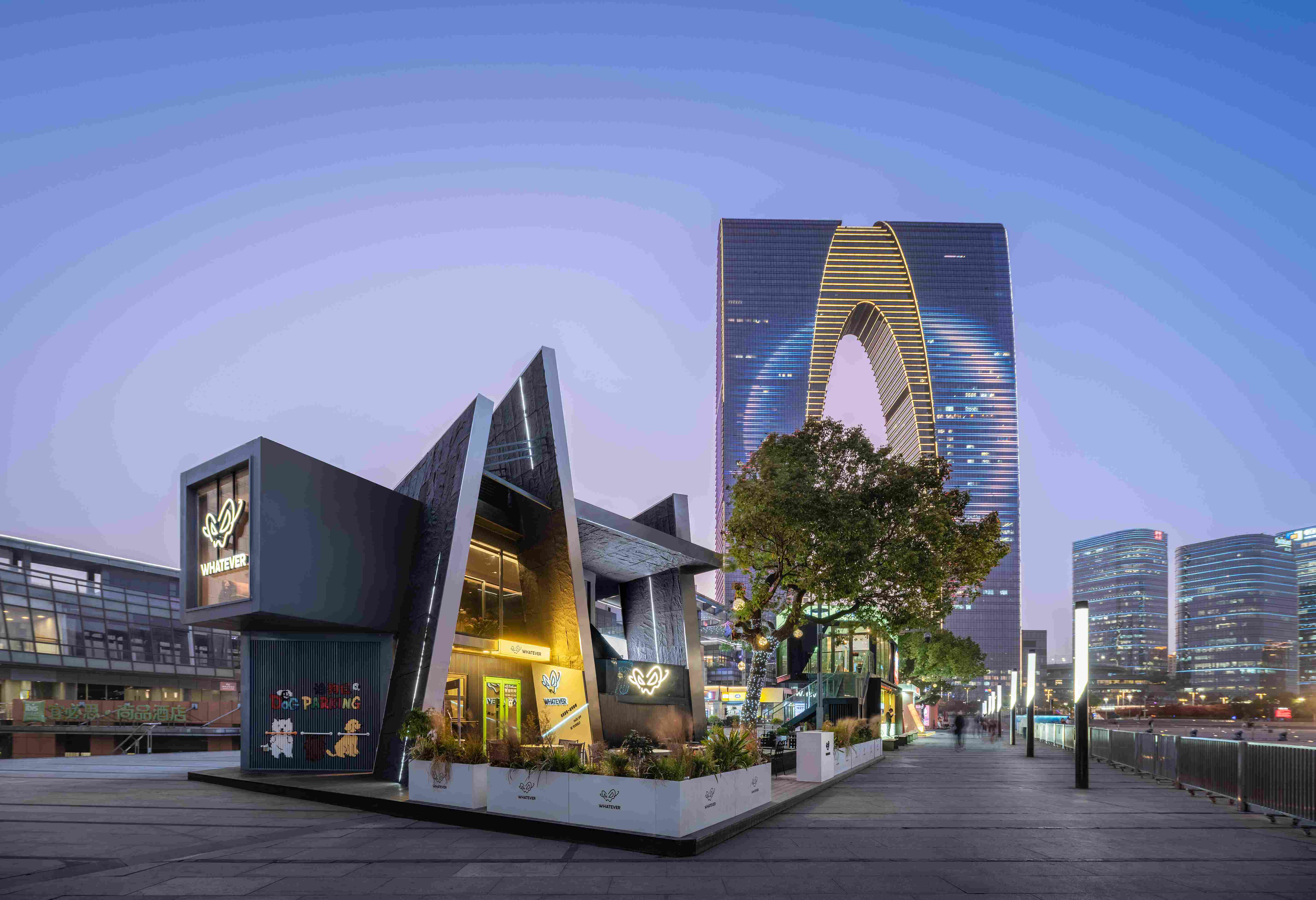

東南立面夜景，south-east elevation (night view) ?王尚

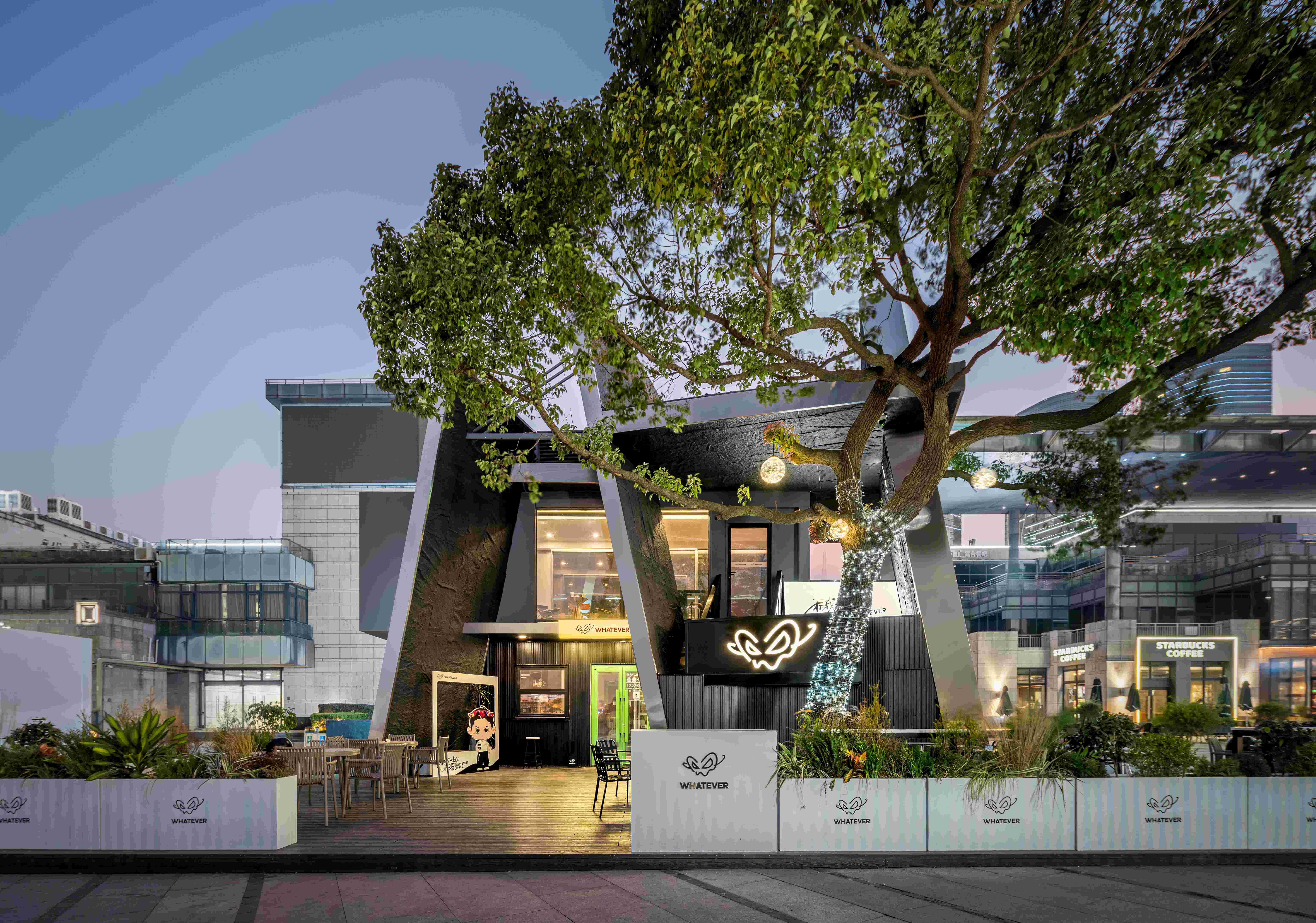

入口正立面夜景，main entrance elevation (night view) ?王尚
結語
在湖岸的裂痕里，城市被重新定義。
在咖啡的縫隙中，生活找到新的節奏。
In the fissures along the lakeshore, the city is redefined.
In the intervals of coffee time, life finds a new rhythm.
項目信息
項目名稱：Whatever 咖啡蘇州湖濱新天地店
設計 & 完成年份：2025.08-2025.10
設計團隊：平介設計
團隊成員：房羽潔，洪佳玫，張瑩，楊楠
項目地址：江蘇省蘇州市星港街 158 號湖濱新天地
建筑面積：80㎡
攝影版權：王尚
公司網址：https://www.parallect-design.com
